Fixed seat 2-axis positioner

Fixed seat 2-axis positioner

  • Classification:Welding auxiliary equipment
  • Views:second
  • Date of issue:2020-11-16 11:08:11
  • Summary
  • Characteristic
  • Parameter

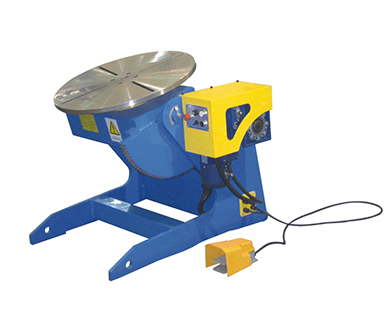

Fixed seat 2-axis positioner

HB series positioners have turning rotating functions. The workpieces are located in the best welding position by turn-ing rotation, the stepless speed regulation rotation meets the different workpieces welding requirement to achieve thepurpose of automatic welding.The positioner can increase the manual lfting adjustment function, using the sub-fle posit-ioning lift, mainly used for workpiece displacement, welding,polishing,assembly other multi-purpose.

Through upgrade it can be used together with robots.The turning rotation of two-axis positioner is driven by AC servomotor backlash-free reducer,coordinated by the external axis to coordinate control software robot, it used as the7th/8th of the robot system.

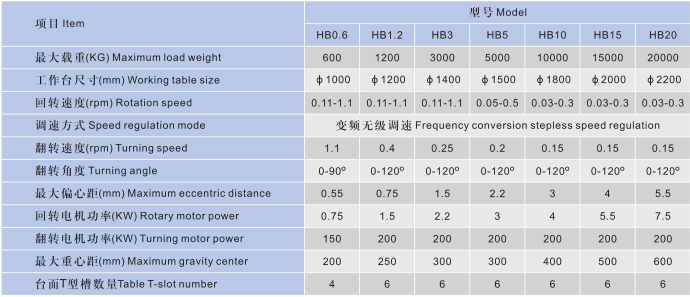

Mian Technical Parameters

Label
