Multi electrode welding machine for bridge plate unit

Multi electrode welding machine for bridge plate unit

  • Classification:Welding equipment for bridge steel structure
  • Views:second
  • Date of issue:2020-11-16 09:48:26
  • Summary
  • Characteristic
  • Parameter

Multi electrode welding machine for bridge plate unit

The multi electrode welding machine of bridge plate unit is developed according to the welding process of fillet weld between u rib / plate rib bottom plate of steel bridge u rib / plate rib unit. This machine is mainly used for sub ship welding of multi u rib / plate rib bottom plate at the same time. It is compact in structure easy to operate.

This machine adopts the structure of bilateral drive, which is mainly composed of driving walking mechanism, gantry body, lifting crossbeam, 6 groups of column traverse mechanism, 6 groups of column lifting mechanism, welding swing arm, 6 sets of weld seam tracking system, automatic welding system, pneumatic control system, double station swing anti deformation jig frame, hydraulic system, electrical control system, etc.

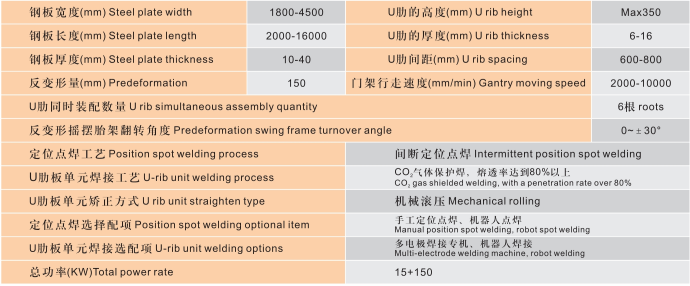

Mian Technical Parameters
