Flat section assembly welding production line

Flat section assembly welding production line

  • Classification:Welding equipment for ship steel structure
  • Views:second
  • Date of issue:2020-11-16 09:30:31
  • Summary
  • Characteristic
  • Parameter

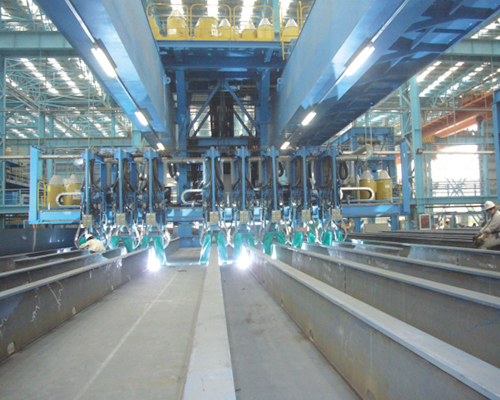

Flat section assembly welding production line

The main workload of shipbuilding is in section manufacturing, it is large volume, large quantity, long consumption time,requires more production processes.It needs to be produced in order then improve production efficiency  reduce laborworking intensity, our company has developed flat section sub-assembly welding production line.This production line ismainly composed of pre-assembled steel plate platform, FCB single-side welding double-side molding machine ( double-sides submerge arc welding), cutting  grinding line , longitudinal installation machine , longitudinal bone welding mach-ine,  rib plate installation machine (rib pulling device), ribbed plate welding machine, transport trolley, sectional jackingmachine  ground logistics delivery system.The flat sub-assembly welding production line is divided into FCB single-sidewelding double-side forming method according to different production methods,steel plate turning double-sides weldingmethod  single plate long steel bar method.

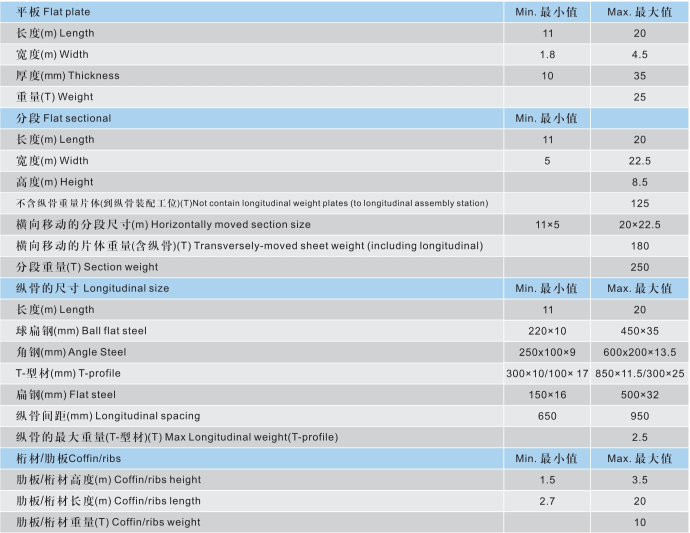

Mian Technical Parameters

Label
