External axis positioner of robot


High precision standard positioner series

The main difference between the high-precision standard positioner  the ordinary positioner is high machining accuracy.TheAC servo motor  the backlash-free reducer are selected for the transmission system. lt is same high precision asthe robot,also can be used together with the robot to attend Linkage control with robot.



1BA series single axis positioner power head

High speed:1200(1BA300,1BA500) per second,700(1BA1000)per second rotation speed,improving production efficie-ncy.

High precision: use backlash-free speed reducer, positioner repeatability can reach ±0.1mm ( the position of the ro-tary center R300)

Lightweight, small, easy to install

Built-in welding use secondary terminal (500A) which make welding cable connect easily

Rotary faceplate adopts central through hole design, which allows cables, trachea, etc. to pass through,making it easierfor welding fixtures installation  connection.

Coordinated control software  robots through external axis coordination controlsoftware, used as the 7th axis of therobot system.



2BF series 2-axis double-support positioner

High speed:180°(2BA300) per second,160°(2BA500) per second,160°(1BA1000)per second rotation speed

High precision: use backlash-free speed reducer, positioner repeatability can reach± 0.1mm ( the position of the ro-tary center R300)

Lightweight, small,easy to install

Built-in welding use secondary terminal (500A) which make welding cable connect easily

Rotary faceplate adopts central through hole design, which allows cables, trachea, etc.pass through,making it easier toinstall  welding fixtures connection

Coordinated control software  robots through external axis coordination control software,used as the 7th  8th axisof the robot system

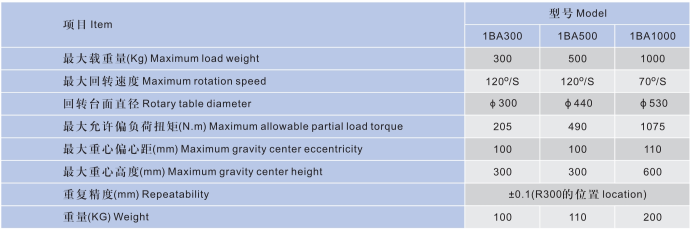

1BA series single axis positioner power head




2BF series 2-axis double-support positioner
