H-beam 60C flange hydraulic straightening machine

H-beam 60C flange hydraulic straightening machine

  • Classification:H-beam production equipment
  • Views:second
  • Date of issue:2020-11-16 13:13:32
  • Summary
  • Characteristic
  • Parameter

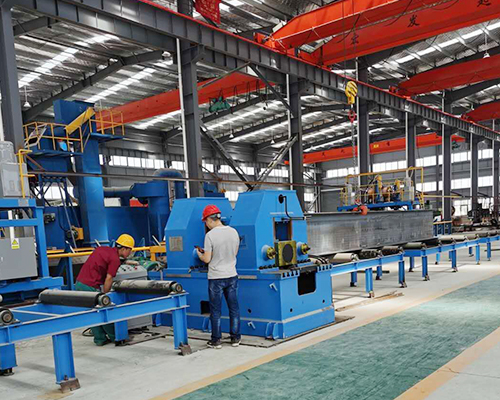

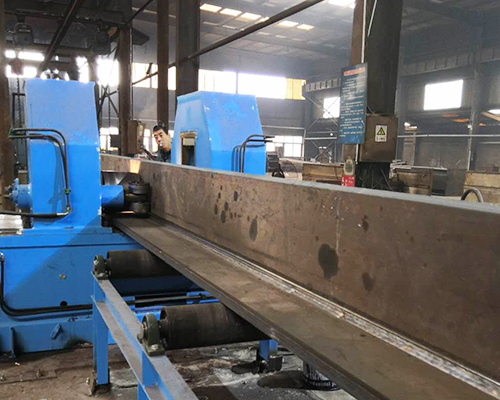

H beam steel flange straighten machine

After the four seams of H beam steel welding finished, it will affected by heat  cause angular distortion.Our companyhas developed special equipment for straighten H beam flange deformation.In order to adapt different thicknesses ofHbeam flange, it is divided into two types: mechanical  hydraulic.The mechanical straighten machine choose simplestructure, low cost  convenient operation.The hydraulic straighten machine has large correction capacity  high automation level. The straighten wheels  main drive rollers of two straighten machines made of high-strength, high-quality, wear-resistant alloy steel, heat treated  durable.

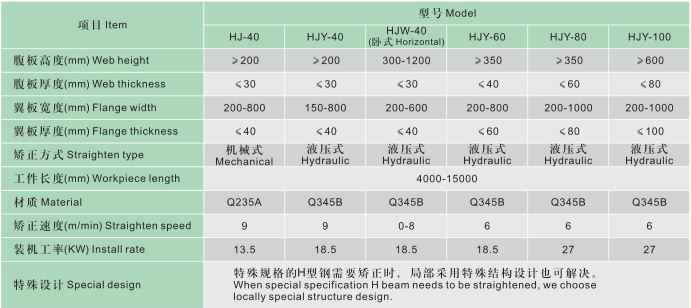

Mian Technical Parameters

Label
