H-beam submerged arc welding machine

H-beam submerged arc welding machine

  • Classification:H-beam production equipment
  • Views:second
  • Date of issue:2020-11-16 13:46:11
  • Summary
  • Characteristic
  • Parameter

Hbeam submerge arc automatic welding machine

H beam submerge arc welding machines mainly include gantry type submerge arc automatic welding machine  doublecantilever submerge arc automatic welding machine. lts running speed is controlled byAC frequency converter, large sp-eed range  stable operation ,also there is a fast return function.lt mainly using weld seam tracking three-axis mecha-nical arc guide tracking(optional electronic contact sensor tracking  laser visual non-contact tracking) to ensure that thewelding torch on the positive welding seam;the host  the welder implement choose integrated linkage control anditequipped with flux automatic spreading  recovery system, high level automation, convenient  quick operation.Double cantilever submerge arc welding machine can weld two workpieces at same time,the height of the web has no heightlimit so it is especially suitable for of large Hbeam automatic welding.In addition, by replacing the arc guide,small box be-am can also be welded in the center position.

Selection of welding power source: domestic brands Chengdu Huayuan, Shandong Aotai, Chengdu Zhenzhong; importbrands Lincoln.

Selection of welding methods: single arc submerge arc welding;single arc double thin wire submerge arc welding;: doublearc double wire submerge arc welding.

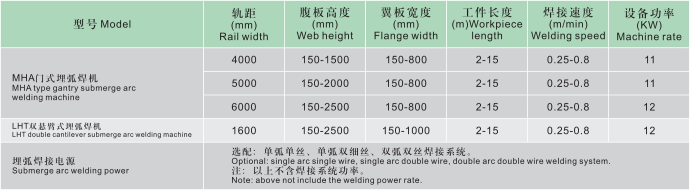

Mian Technical Parameters
