DMX series end face milling machine

DMX series end face milling machine

  • Classification:Steel structure milling equipment
  • Views:second
  • Date of issue:2020-11-16 13:10:50
  • Summary
  • Characteristic
  • Parameter

DMX series end face milling machine

DMX series end face milling machine is mainly used for machining box beam column, H beam steel  cylinder body endface milling.This end face milling machine is equipped with a special milling head, horizontally moving bed  lifting col-umn, the milling power head is driven in the X  Y direction by frequency converter for speed adjust, control by PLC, mil-ling power heads can automatically carry outZ-  milling, then attend automatic control of the machining process, aftersupport by different worktables it can finish H beam steel, box beam column  tube end face milling.It is widely used inthe construction steel structure,electricity,petrochemicals, bridges,power plants, boilers  other industries.

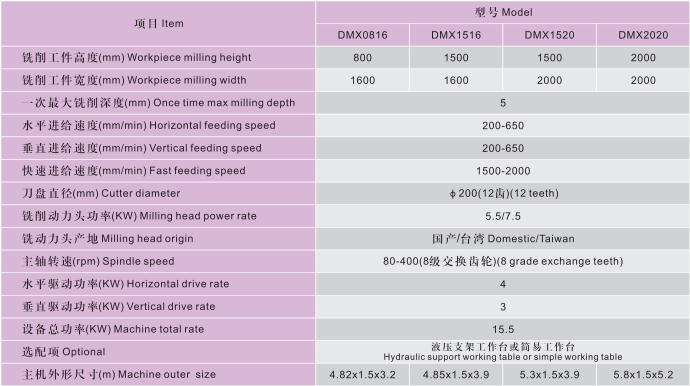

Mian Technical Parameters
