CNC series flame/plasma cutting machine series

CNC series flame/plasma cutting machine series

  • Classification:CNC cutting machine plane drilling machine
  • Views:second
  • Date of issue:2020-11-23 11:07:45
  • Summary
  • Characteristic
  • Parameter

1、 Detailed introduction of CNC cutting machine products

CNC series flame/plasma cutting machine series  brief introduction

CNC cutting machine series adopts a gantry type structure.The structural parts are made of profile welding, shot blasting. finishing.T hey have characteristic like high strength, igh precision,  long-term use without deformation.Longitu-dinal walking rails are made of heavy-duty rail grinding racks with high transmission precision  stable operation to ens-ure cutting quality. The horizontal walking guide adopts a high-precision linear guide rail, which has small frictional resist-ance, high running speed  high precision.The drive system adopts an all-digital AC servo + high-precision planetarygear reducer to ensure the running accuracy.CNC system can be selected according to user requirements such as UnitedStates Hypertherm,Spain Fager, ShanghaiJiaoda University, Beijing Start  other famous local  abroad brands.Thecutting medium can choose  oxyacetylene flame cutting,plasma arc cutting, high energy laser cutting.

CNC cutting machine adopts a modular design, a variety of auxiliary functions can be arbitrarily combined according torequest, can be equipped with automatic ignition, automatic height adjustment, automatic perforation, powder  ink jetmarking, flame straight tri-cutting torch  plasma groove cutting  other functions,

The machine is mainly composed of main frame, precision mechanical transmission system, guide rail component, air co-ntrol system,  electronic control system, it is divided into singlel  double driven gantry structures.The track gaugecan be selected  3000-24000mm as required,  the maximum operating speed is 12m/min  24m/min.

Application scope: Widely used in the steel structures construction, shipbuilding, bridges, construction machinery, press-ure vessels, petrochemicals, port machinery, locomotives, military  metal processing industries.

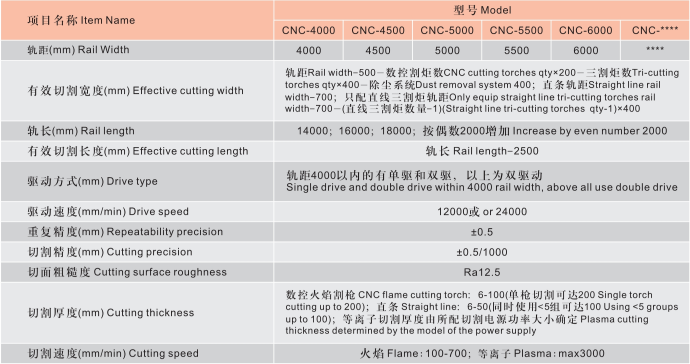

CNC flame/plasma cutting machine technical parameters

等离子切割机

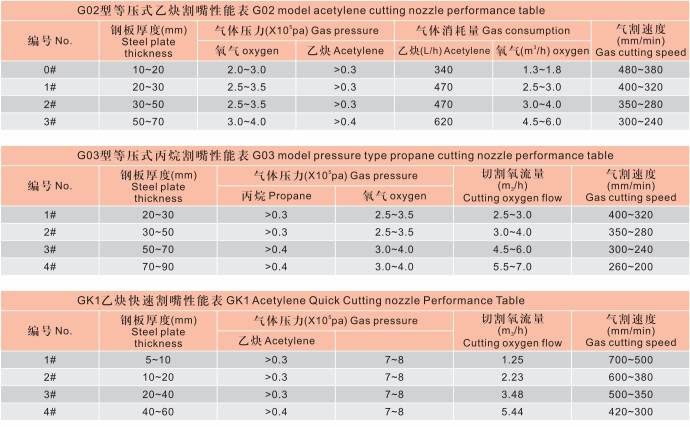

Flame cutting torch technical parameters


等离子切割机

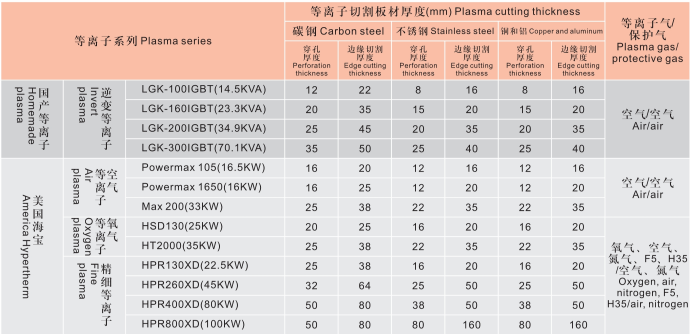

Plasmacutting power supply technical parameters


等离子切割机
