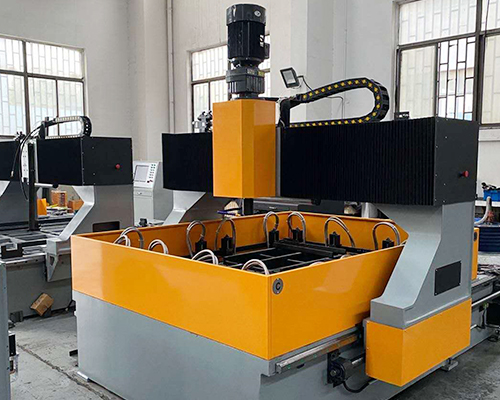

ZKZ CNC plate drilling machine

ZKZ CNC plate drilling machine

  • Classification:CNC cutting machine plane drilling machine
  • Views:second
  • Date of issue:2020-11-16 13:11:03
  • Summary
  • Characteristic
  • Parameter

ZKZCNC plate drilling machine is a special equipment for drilling processing of steel structure coupling plate  base plate.There are four work stations on the bed platform which can be processed in one piece  multiple pieces,  it can beprocessed by multiple pieces overlap drilling,production efficiency is very high.This machine is mainly composed of CNCcontrol system, working platform, drilling mast, drilling head, automatic chip removal system,cutting fluid circulation sys-tem  hydraulic system.

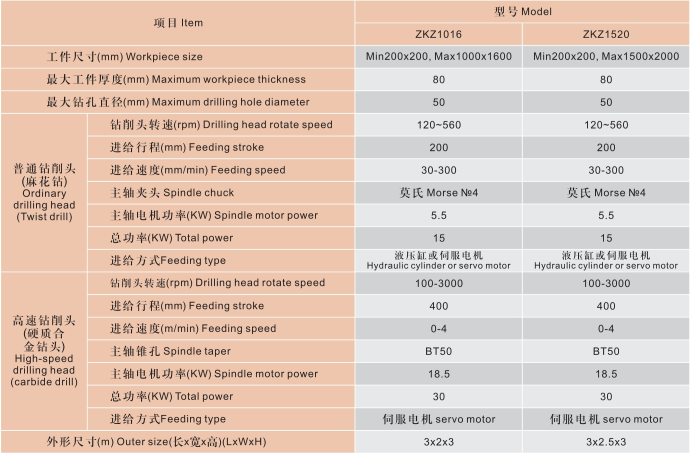

Mian Technical Parameters
